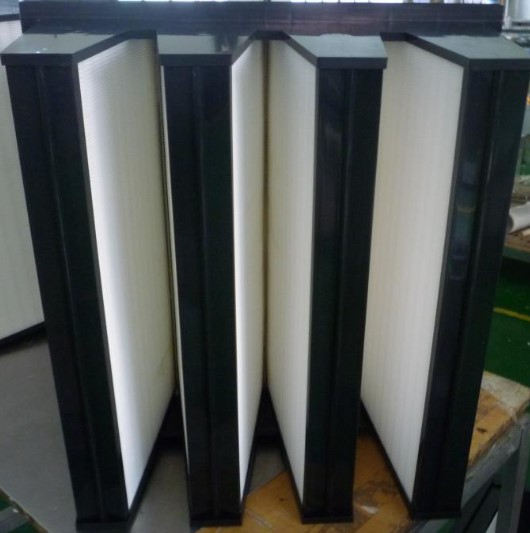

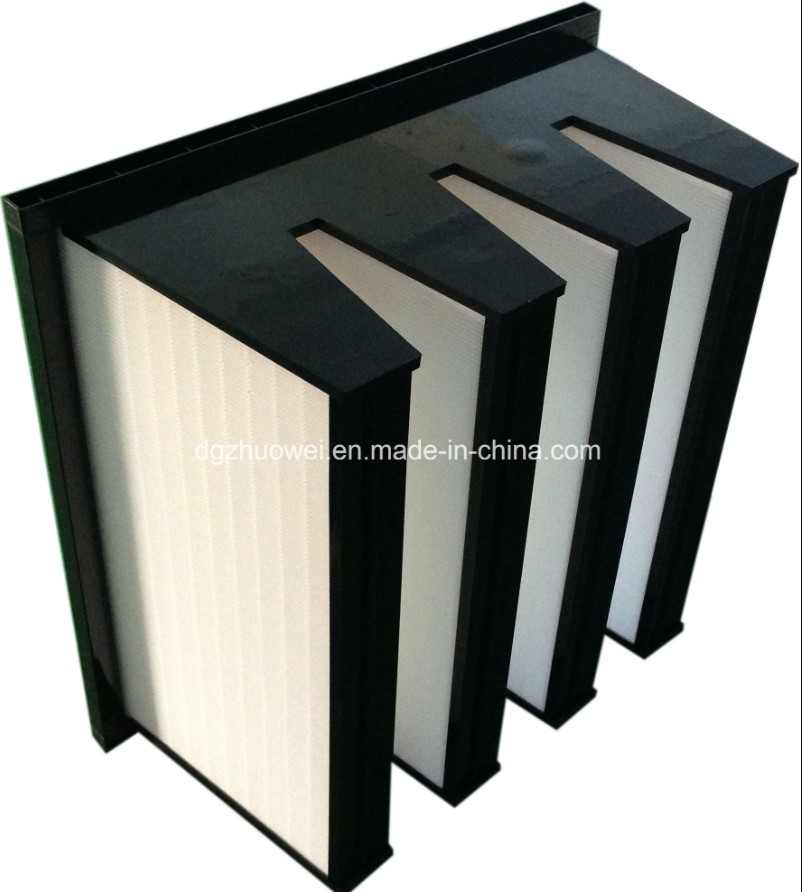

Merv 15 Pleated V Bank Filters Fine Dust Air Filter for HVAC
Solution features
This paper is constructed of glass fibers as principal raw meterial by wet process;
2. High debris holding capacity, high proficiency;
3. Depending on your filtering efficiency, the solutions are divided into some series(ASHRAE, HEPA, ULPA)
Job application
Commonly used in a myriad of air filters, air filter, air cleaner vacuum, air flow supply clean bench, FFU plus special air cleaner, electronics, medicine aviation and for example.
Parameter
Actual Size HxWxD (mm) | Filter efficiency | Air Flow /pressure drop (m³/h)/pa | Area(m2) |
592*592*292 | H13 | 3400/250 | 18.13 |
592*287*292 | H13 | 1700/250 | 8.01 |
592*490*292 | H13 | 2700/250 | 14.7 |
592*592*292 | H14 | 3400/280 | 18.13 |
592*287*292 | H14 | 1700/280 | 8.01 |
592*490*292 | H14 | 2700/280 | 14.7 |
Merv 15 Pleated V Bank Filters Fine Dust Air Filter for HVAC
Solution features
This paper is constructed of glass fibers as principal raw meterial by wet process;
2. High debris holding capacity, high proficiency;
3. Depending on your filtering efficiency, the solutions are divided into some series(ASHRAE, HEPA, ULPA)
Job application
Commonly used in a myriad of air filters, air filter, air cleaner vacuum, air flow supply clean bench, FFU plus special air cleaner, electronics, medicine aviation and for example.
Parameter
Actual Size HxWxD (mm) | Filter efficiency | Air Flow /pressure drop (m³/h)/pa | Area(m2) |
592*592*292 | H13 | 3400/250 | 18.13 |
592*287*292 | H13 | 1700/250 | 8.01 |
592*490*292 | H13 | 2700/250 | 14.7 |
592*592*292 | H14 | 3400/280 | 18.13 |
592*287*292 | H14 | 1700/280 | 8.01 |
592*490*292 | H14 | 2700/280 | 14.7 |
