F7
VTF

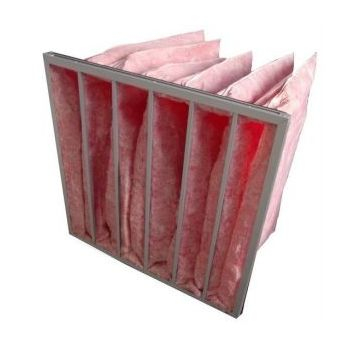

Metal Frame Glassfiber Media Pocket Filter
Feature
Robust and durable material；
High dust holding capacity as well as low resistance；
High porosity with filter media, large filtration area；
Good efficiency stability；
Temperature resistance approximately 150 degrees；
No formaldehyde improvement, safe and environmental protection；
Very good air tightness；
low clogging quote and long service life；
Compliance with EN779-2012, ISO 16890-2016 examination standards；
Application:
Secondary and also back-end filtration for a group of ventilation systems, air health and fitness systems and dust elimination systems.
Parameter
Size W*H*D(mm) | Pocket NO. （PCS） | Rated Airflow (m³/h) | Initial Pressure（Pa） | Final Pressure（Pa） | Filter particle （μm） | Eff. (%) | Filter grade EN779 | Color |
592*592*600 | 6 | 3400 | <55 | <400 | ≥1 | 45% | F5 | orange |
492*592*600 | 5 | 2800 | <55 | <400 | ≥1 | 45% | F5 | orange |
287*592*600 | 3 | 1700 | <55 | <400 | ≥1 | 45% | F5 | orange |
592*592*600 | 6 | 3400 | <85 | <400 | ≥1 | 65% | F6 | green |
492*592*600 | 5 | 2800 | <85 | <400 | ≥1 | 65% | F6 | green |
287*592*600 | 3 | 1700 | <85 | <400 | ≥1 | 65% | F6 | green |
592*592*600 | 6 | 3400 | <150 | <400 | ≥1 | 85% | F7 | pink |
492*592*600 | 5 | 2800 | <150 | <400 | ≥1 | 85% | F7 | pink |
287*592*600 | 3 | 1700 | <150 | <400 | ≥1 | 85% | F7 | pink |
592*592*600 | 6 | 2700 | <175 | <400 | ≥1 | 90% | F8 | yellow |
492*592*600 | 5 | 2250 | <180 | <400 | ≥1 | 90% | F8 | yellow |
287*592*600 | 3 | 1350 | <170 | <400 | ≥1 | 90% | F8 | yellow |
