Large Dust Holding Capacity Fiberglass Air Filter Media Roll
Home » Products » Hot Product » Large Dust Holding Capacity Fiberglass Air Filter Media Roll

Product Category

Product Detail

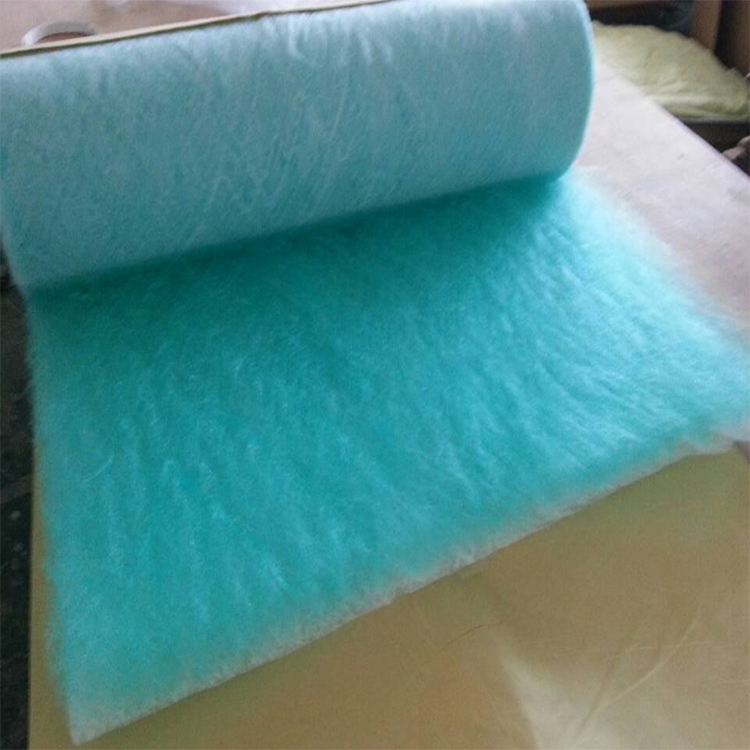

Large Dust Holding Capacity Fiberglass Air Filter Media Roll

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Aspect

● Made of excessive strength continuous filament fiberglass, arranged evenly and orderly

● It's got a very high collecting efficiency

● The first resistance of fluffy fiberglass organic cotton is little

● The formaldehyde content is lower than international standard of toddler underwear

● The manufacturing process is unique, surface is encrypted, and middle structure is three-dimensional assistance

Application

The fiberglass cotton could be coiled or cut into pieces to provide customers. It can possibly be framed in metal ( gal sheet or aluminum )


Atmosphere purification of high heat range places in various business Oil and paint mist filtration for industrial as well as civil use.

Technical Parameters

Model

PA-50/60

PA-100

Weight

240g/㎡

320g/㎡

Filter Efficiency

92%-96%

97%-99%

Initial resistance

15Pa

20Pa

Final resistance

250Pa

280Pa

Air velocity

0.7-1.5m/s

0.7-1.75m/s

Dust Holding Capacity

3200-3600g/㎡

3600-4900g/㎡

Maximum temperature

170℃

170℃

Thickness

50/60mm

100mm

Width

0.8/1.0/2.0m

Note: other specifications can be customized according to demand
