Environmental Protection Filtration Spray Filter Media

Availability:
Quantity:

Attribute

● Made of large strength continuous filament fiberglass, arranged evenly and orderly

● It has a very high collecting efficiency

● Initial resistance of fluffy fiberglass organic and natural is little

● The formaldehyde content is less than international standard of toddler underwear

● The output process is unique, surface area is encrypted, and middle structure is three-dimensional assist

 Application

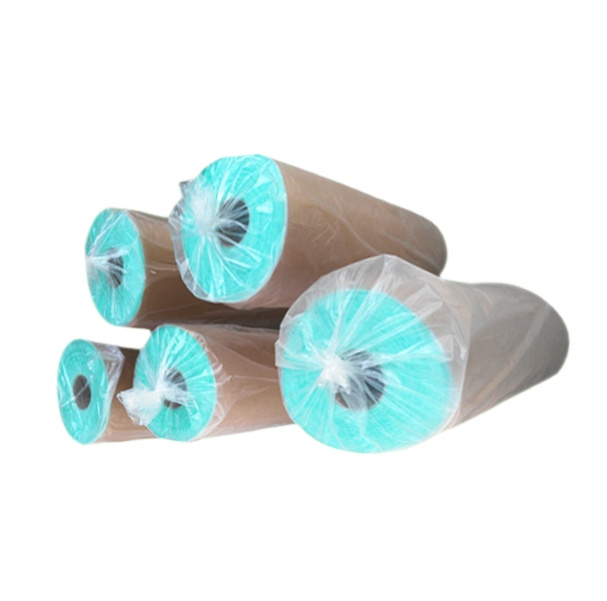

 The fiberglass cotton can be coiled or cut into pieces to supply customers. It can possibly be framed in metal ( galvanized sheet or aluminum )


Atmosphere purification of high temperature places in various sectors Oil and paint mist filtration for industrial as well as civil use.

Technical Parameters

Model

PA-50/60

PA-100

Weight

240g/㎡

320g/㎡

Filter Efficiency

92%-96%

97%-99%

Initial resistance

15Pa

20Pa

Final resistance

250Pa

280Pa

Air velocity

0.7-1.5m/s

0.7-1.75m/s

Dust Holding Capacity

3200-3600g/㎡

3600-4900g/㎡

Maximum temperature

170℃

170℃

Thickness

50/60mm

100mm

Width

0.8/1.0/2.0m

Note: other specifications can be customized according to demand
