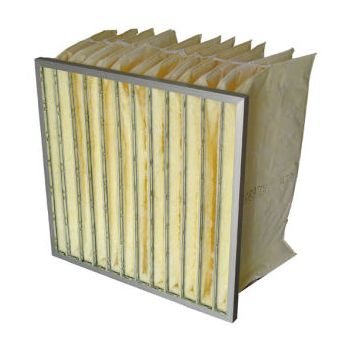

Medium Efficiency Fiberglass Pocket Filter for Clean Room
Home » Products » Hot Product » Medium Efficiency Fiberglass Pocket Filter for Clean Room

Product Category

Product Detail

Share to:

Medium Efficiency Fiberglass Pocket Filter for Clean Room

Availability:
Quantity:
  • F8
  • VTF

Medium Efficiency Fiberglass Pocket Filter for Clean Room


Feature

Robust and durable material;

Excessive dust holding capacity as well as low resistance;

High porosity involving filter media, large filtration area;

Good efficiency stability;

Temperature resistance up to 150 degrees;

No formaldehyde supplement, safe and environmental protection;

Excellent air tightness;

low clogging charge and long service life;

Complying with EN779-2012, ISO 16890-2016 experiment standards;


Application:



Secondary or even back-end filtration for a good number of ventilation systems, air health and fitness systems and dust removal systems.


Parameter

Size

W*H*D(mm)

Pocket NO.

(PCS)

Rated

Airflow

(m³/h)

Initial Pressure(Pa)

Final Pressure(Pa)

Filter particle

(μm)

Eff.

(%)

Filter

grade

EN779

Color

592*592*600

6

3400

<55

<400

≥1

45%

F5

orange

492*592*600

5

2800

<55

<400

≥1

45%

F5

orange

287*592*600

3

1700

<55

<400

≥1

45%

F5

orange

592*592*600

6

3400

<85

<400

≥1

65%

F6

green

492*592*600

5

2800

<85

<400

≥1

65%

F6

green

287*592*600

3

1700

<85

<400

≥1

65%

F6

green

592*592*600

6

3400

<150

<400

≥1

85%

F7

pink

492*592*600

5

2800

<150

<400

≥1

85%

F7

pink

287*592*600

3

1700

<150

<400

≥1

85%

F7

pink

592*592*600

6

2700

<175

<400

≥1

90%

F8

yellow

492*592*600

5

2250

<180

<400

≥1

90%

F8

yellow

287*592*600

3

1350

<170

<400

≥1

90%

F8

yellow



Size

W*H*D(mm)

Pocket NO.

(PCS)

Rated

Airflow

(m&sup3;/h)

Initial Pressure(Pa)

Final Pressure(Pa)

Filter particle

(μm)

Eff.

(%)

Filter

grade

EN779

Color

592*592*600

6

3400

<55

<400

≥1

45%

F5

orange

492*592*600

5

2800

<55

<400

≥1

45%

F5

orange

287*592*600

3

1700

<55

<400

≥1

45%

F5

orange

592*592*600

6

3400

<85

<400

≥1

65%

F6

green

492*592*600

5

2800

<85

<400

≥1

65%

F6

green

287*592*600

3

1700

<85

<400

≥1

65%

F6

green

592*592*600

6

3400

<150

<400

≥1

85%

F7

pink

492*592*600

5

2800

<150

<400

≥1

85%

F7

pink

287*592*600

3

1700

<150

<400

≥1

85%

F7

pink

592*592*600

6

2700

<175

<400

≥1

90%

F8

yellow

492*592*600

5

2250

<180

<400

≥1

90%

F8

yellow

287*592*600

3

1350

<170

<400

≥1

90%

F8

yellow
