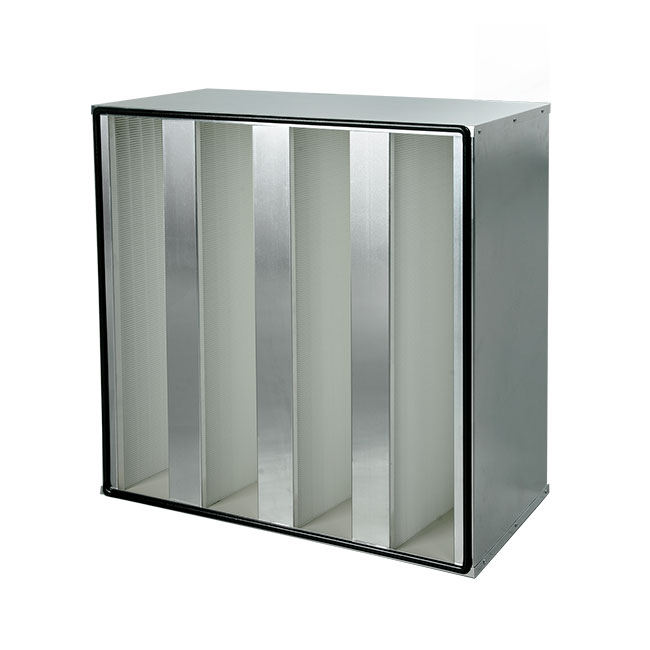

Galvanized Frame Compact Filter
Feature
High air flow rates,up to 4000m3/h
Low pressure drop
EN1822 standard
High filter surface area offers lower pressure drop for energy saving and longer life.
Maximum pressure drop: 600 Pa
Application
High efficiency final filtration in air conditioning systems, housing and diffuser.
Parameter
Actual Size HxWxD (mm) | Filter efficiency | Air Flow /pressure drop (m³/h)/pa | Area(m2) |
610*610*292 | E11 | 4000/250 | 20.8 |
305*610*292 | E11 | 2000/250 | 10.4 |
610*610*292 | H13 | 3400/230 | 20.8 |
305*610*292 | H13 | 1700/230 | 10.4 |
610*610*292 | H14 | 3400/250 | 20.8 |
305*610*292 | H14 | 1700/250 | 10.4 |
