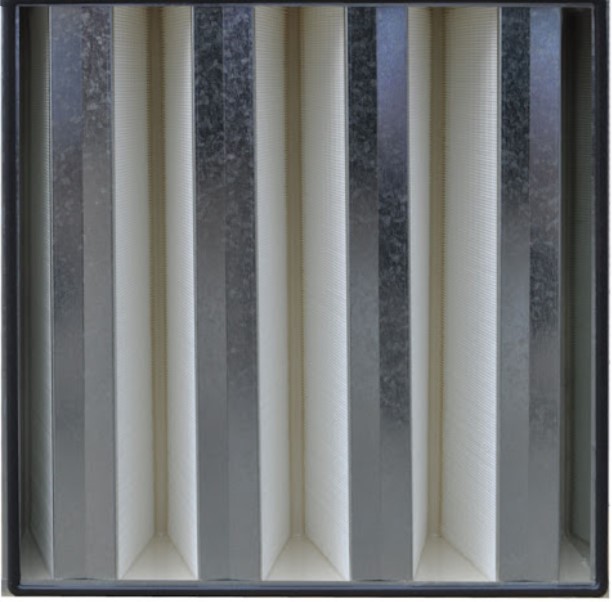

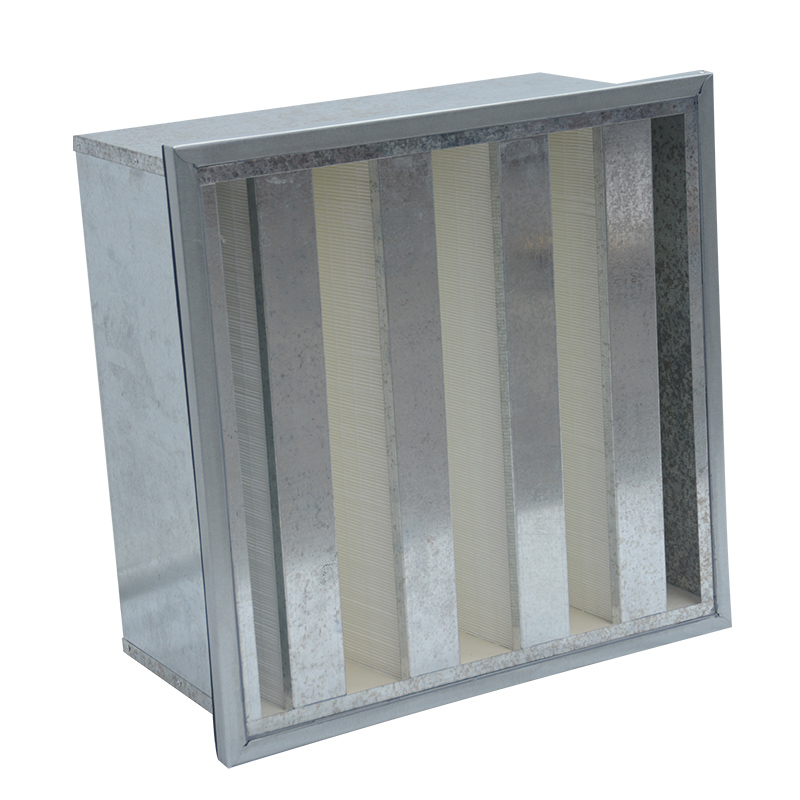

V Bank HVAC Filter
Capabilities
1. Uniform texture, double-layer filtration material structure, layered purification;
2. Stable chemical along with physical properties and robust corrosion resistance;
3. Large filtration efficiency and reduced resistance;
4. Large specific surface and high dust power;
5. High hydrophobicity, excellent water and moisture opposition;
6. Large expansion strength and high filter stuff stiffness;
7. The fluctuation of over the top quantitative and vertical quantitative is extremely small;
8. High heat range resistance, can be found in high temperature environment inside of 300 ℃.
Application
It truly is the raw material for your production of diaphragm sift, non diaphragm filter, mixed filter and high-efficiency HEPA sift.
Parameter
Actual Size HxWxD (mm) | Filter efficiency | Air Flow /pressure drop (m³/h)/pa | Area(m2) |
610*610*292 | E11 | 4000/250 | 20.8 |
305*610*292 | E11 | 2000/250 | 10.4 |
610*610*292 | H13 | 3400/230 | 20.8 |
305*610*292 | H13 | 1700/230 | 10.4 |
610*610*292 | H14 | 3400/250 | 20.8 |
305*610*292 | H14 | 1700/250 | 10.4 |
