Views: 0 Author: Site Editor Publish Time: 2025-09-03 Origin: Site
Choosing the right air filter type can be confusing given the many options available. This guide provides a straightforward comparison of common air filter types to help you match filtration needs with your environment and budget.
GUANGDONG VITE AIR CLEAN SYSTEM CO., LTD., a professional air filter manufacturer with extensive experience, offers a wide variety of filters designed for different applications. Understanding the characteristics of each air filter type is key to making an informed choice.
Mechanical air filters are the most common and include fiberglass, pleated, media, and bag filters. These rely on physical barriers to trap airborne particles.
Fiberglass filters consist of thin, loosely woven glass fibers forming a flat panel. These filters are designed primarily for capturing large dust particles, debris, and lint. Because of their coarse media, fiberglass filters usually have low Minimum Efficiency Reporting Value (MERV) ratings—typically between 1 and 4—which means they are effective at capturing large particles but perform poorly against smaller ones. They are popular for use in residential HVAC systems where basic filtration is sufficient and cost is a primary concern.
Pleated filters, on the other hand, use a folded design that increases the surface area available for trapping particles. Their media are often synthetic or cotton-based and can trap smaller particles than fiberglass filters, typically reflected by MERV ratings ranging from 5 to 13. The pleated design also allows for greater dust-holding capacity and longer filter life. These filters strike a balance between cost and performance, making them a common choice for both residential and commercial applications.
Media filters refer broadly to filters made from a variety of synthetic or natural fibers, sometimes combined with additives to enhance performance. These filters come in different thicknesses and densities and are often used in commercial or industrial settings. Their MERV ratings vary widely depending on media composition.
Bag filters are specialized mechanical filters consisting of multiple fabric pockets, often polyester or fiberglass, sewn together and housed in frames. This design maximizes the filter surface area and dust-holding capacity. Bag filters are ideal for environments with high particulate loads, such as factories, warehouses, or large commercial buildings. They typically have MERV ratings ranging from 8 up to 15 or higher, depending on media quality and construction.
Fiberglass filters are inexpensive and disposable but tend to clog quickly and have short life spans—often needing replacement every 30 days or less. Their low efficiency means that while they protect equipment from large debris, they offer limited health benefits.
Pleated filters offer improved efficiency and longer service life, often lasting 3 to 6 months under normal conditions. However, higher-efficiency pleated filters may increase airflow resistance, which can slightly impact HVAC energy use if the system is not designed for it.
Media filters provide versatility and durability, with some designed for high-temperature or chemically aggressive environments. Depending on application and maintenance, their lifespan can range from a few months to over a year.
Bag filters excel in heavy dust environments, offering long service lives and superior dust-holding capacity. However, their initial cost and maintenance complexity are higher, requiring specialized housings and periodic cleaning or replacement.

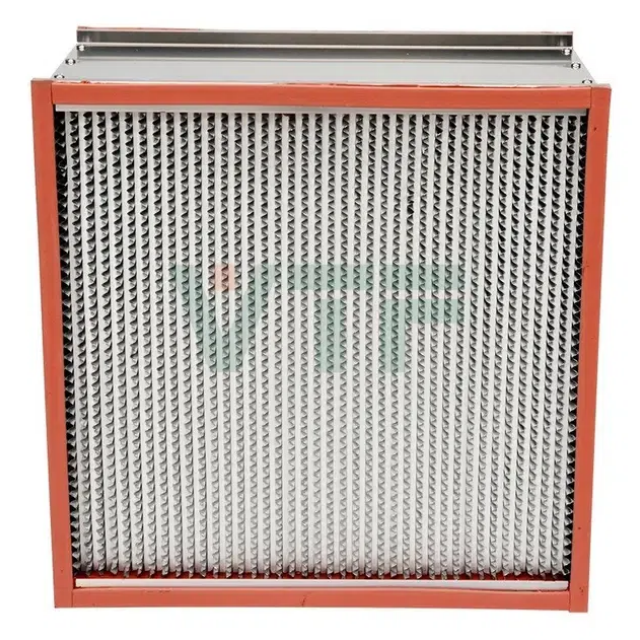

HEPA and ULPA filters represent the pinnacle of mechanical filtration efficiency, targeting the smallest and most hazardous airborne particles.
HEPA stands for High-Efficiency Particulate Air. According to the US Environmental Protection Agency (EPA), a true HEPA filter must capture at least 99.97% of airborne particles down to 0.3 microns in diameter—the size considered the most penetrating particle size (MPPS). ULPA filters (Ultra-Low Penetration Air) provide even higher efficiency, removing 99.999% of particles down to 0.12 microns, suitable for the most sensitive environments.
HEPA filters are critical in healthcare facilities, pharmaceutical manufacturing, cleanrooms for microelectronics, laboratories, and other settings where controlling microscopic contamination is vital. They effectively trap bacteria, viruses, allergens, and fine dust that lower-efficiency filters cannot remove.
Because HEPA filters are dense, they create significant airflow resistance, which can strain HVAC fans and increase energy consumption if not properly accounted for. To extend HEPA filter life and optimize system performance, pre-filters—often pleated or media types—are installed upstream to capture larger particles. This staged filtration protects the HEPA media from rapid clogging and damage.
System design must consider the pressure drop introduced by HEPA filters to ensure sufficient airflow. Inadequate airflow reduces filtration effectiveness and can cause system stress or imbalance.
While mechanical filters target particles, adsorption filters specifically remove gaseous pollutants and odors through chemical processes.
Activated carbon filters contain porous carbon granules that adsorb volatile organic compounds (VOCs), tobacco smoke, chemical fumes, odors, and some harmful gases. The vast internal surface area of carbon media allows it to trap and hold molecules of these contaminants effectively.
However, activated carbon does not remove particulate matter, dust, or microbes, so it is not a standalone solution for comprehensive air purification. Its capacity is finite; once saturated, the carbon filter loses effectiveness and must be replaced or regenerated.
Many air filtration systems combine activated carbon layers with particulate filters to deliver both gas and particle removal. This combination is common in laboratories, industrial environments, commercial kitchens, and healthcare settings where odors and VOCs coexist with dust and microbes. By integrating carbon with pleated or HEPA filters, users get comprehensive air quality control.
Electrostatic filters use static electricity to attract and hold airborne particles, providing an alternative to purely mechanical filtration.
Washable electrostatic filters are designed to be cleaned and reused, reducing replacement costs and environmental waste. However, their initial filtration efficiency is generally lower than disposable pleated or HEPA filters, especially for very fine particles.
Electronic air cleaners generate charged ions to attract particles to collection plates. While effective, these units require power, regular maintenance, and cleaning to sustain performance. Some models also produce small amounts of ozone as a byproduct, which can be a concern for indoor air quality.
Electrostatic filters accumulate dust and need periodic washing or cleaning to maintain filtration efficiency. Neglecting maintenance can cause pressure drops and diminished air quality. Additionally, frequent washing can degrade filter media, so replacement is eventually necessary.
For industrial applications, robust filter designs such as baghouses, cartridge filters, and V-bank filters are prevalent.
Baghouses are large-scale filtration systems that use multiple fabric bags to capture dust in heavy-duty industrial environments such as mining, cement production, or manufacturing. They are designed to handle very high particulate concentrations, with options for pulse-jet cleaning to extend filter life.
V-bank and cartridge filters fit applications needing compact, efficient filtration with moderate dust loads, such as commercial HVAC systems or smaller industrial plants. These engineered filter cabinets provide increased surface area within a small footprint.
Dust collection systems remove large particulate emissions directly from the source before they enter the general airflow, often using cyclonic separation or hoppers. Filtration systems, by contrast, focus on cleaning exhaust or recirculated air by trapping finer particles and gaseous contaminants. Many facilities use both technologies in tandem to meet environmental standards and protect worker health.
Choosing the right air filter type depends on understanding your specific environment, contaminants, and budget. Whether you need basic dust removal with fiberglass or pleated filters, high-efficiency particle control with HEPA filters, gas and odor removal with activated carbon, or industrial solutions like baghouses, matching the filter to your application ensures optimal air quality and equipment protection. GUANGDONG VITE AIR CLEAN SYSTEM CO., LTD. offers a comprehensive range of air filter types tailored to meet these diverse needs. Contact us to find the perfect filter solution for your application.
