Managing industrial HVAC systems requires a delicate balance. Facility leaders must maintain high-volume airflow and meet strict Indoor Air Quality (IAQ) requirements. Unfortunately, pushing systems to achieve these goals often causes energy consumption to spike. The bag filter, commonly known as a pocket filter, solves this tension. It functions as a standard mid-to-high efficiency Air Filter designed specifically to capture large volumes of particulate matter over extended maintenance cycles. Its unique geometry allows systems to process heavily contaminated air without choking the blowers.
This article provides an evidence-based framework for evaluating, specifying, and deploying these filtration systems in enterprise ventilation networks. You will discover practical methods to optimize your air handling units, ensure strict regulatory compliance, and significantly reduce long-term operational waste. Procurement engineers and facility managers will learn how to balance airflow dynamics with essential particulate capture requirements.
High Dust-Holding Capacity: Extended surface area via pocket design dramatically increases dust-holding capacity (DHC) compared to standard flat or pleated panels.
Energy Efficiency: Optimized aerodynamic pocket inflation reduces resistance to airflow (pressure drop), directly lowering HVAC energy consumption.
Standardized Compliance: Commercial bag filters are engineered to meet strict ISO 16890 guidelines and support EPA-aligned emission monitoring standards.
Clear Use Cases: Ideal for high-dust environments but requires adequate linear installation space, making it a distinct choice versus rigid box filters.
Industrial facilities constantly battle high particulate loads. Airborne dust quickly clogs standard panel filters. They blind over rapidly, blocking airflow and straining the entire ventilation system. This rapid degradation leads to frequent replacement downtime. Maintenance crews must repeatedly halt operations to swap out exhausted units. It also causes surging fan energy consumption. Motors work significantly harder to push air through a blocked, dirty barrier. The electrical draw increases exponentially as the filter clogs.
The multi-pocket architecture of a bag filter effectively solves this ongoing problem. It folds a massive amount of filtration media into a standard frame size. A standard 24x24 inch front frame might hold up to 90 square feet of media when deployed in a deep-pocket configuration. This extended surface area radically changes the operational dynamics of the ventilation network. It distributes the incoming dust load across a much wider physical area. This broad distribution prevents premature blinding of the air passages.
Adopting this extended-surface design produces two major economic outcomes for facility management:
Extended Maintenance Intervals: The massive dust-holding capacity stretches the time between mandatory filter change-outs. Maintenance teams spend far less time swapping out dirty filters. This frees them up for critical facility repairs and preventive maintenance tasks. You drastically reduce the raw labor hours previously dedicated to routine HVAC upkeep.
Predictable Lifecycle Costs: Consistent dust accumulation profiles allow for highly accurate financial forecasting. You can plan operational budgets months in advance without surprise spikes in filter consumption. Facilities avoid emergency procurement rushes because the media degrades at a steady, measurable rate. We consistently see smoother operational planning when utilizing extended surface filters.
Airflow dynamics dictate the success of any high-capacity filtration system. During operation, individual pockets inflate aerodynamically to accommodate massive volumes of incoming air. This specific inflation ensures uniform airflow distribution across the entire media surface. It prevents localized media exhaustion. Localized exhaustion occurs when one section of a filter clogs completely while other sections remain virtually untouched. Proper aerodynamic inflation keeps the system breathing easily. It utilizes every single square inch of the available material.
Understanding the pressure drop curve is vital for facility managers. A high-quality Air Filter always starts with a lower initial pressure drop. Fan motors consume significantly less electricity to push air through clean, well-inflated pockets. As microscopic particles accumulate within the fiber matrix, resistance gradually increases along a highly predictable curve.
However, facility teams must closely respect strict system limits. Operating a filter past its recommended final pressure drop poses severe operational risks. It invites sudden media blowout. A blowout happens when the static pressure literally tears the fabric, dumping all trapped dirt directly into the clean airstream. It also places extreme electrical strain on fan motors. This strain can potentially lead to overheating, blown fuses, and premature mechanical failure.

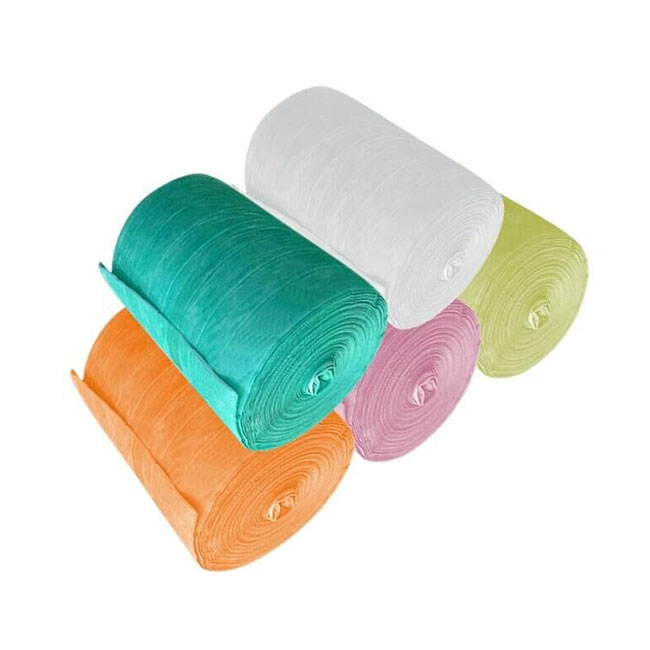

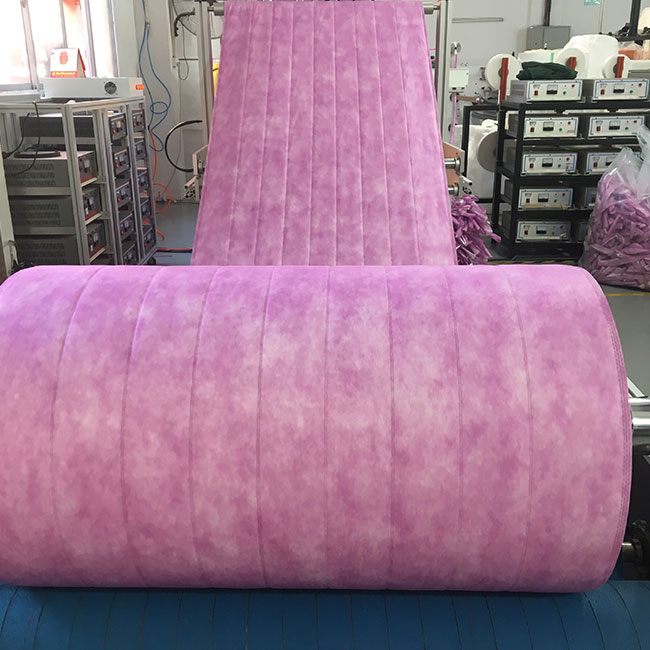

Material science plays a heavy role in dictating these aerodynamic dynamics. Choosing the right filter media ensures optimal performance for your specific environment. Different fibers react differently to moisture, dust types, and airflow velocity.
Material Comparison for Extended Surface Filters | ||
Material Type | Key Characteristics | Best Use Environment |
|---|---|---|
Synthetic Media | Features high mechanical strength. It resists moisture absorption effectively. It relies partly on an applied electrostatic charge to capture ultrafine particles initially. | Ideal for high humidity environments, coastal facilities, and systems experiencing turbulent airflow. |
Fiberglass Media | Delivers consistent efficiency over time. It does not lose effectiveness due to static discharge. It relies purely on the physical mechanical interception of particles. | Perfect for fine particle environments, medical facilities, and spaces requiring stable, long-term performance guarantees. |
Selecting the right high-capacity commercial filter requires carefully examining the physical architecture of the air handling unit (AHU). Engineers typically must decide between flexible pocket designs and rigid cell filters. Each format offers distinct advantages depending on the structural constraints of the building. You must weigh physical space against airflow patterns.
Space Limitations (Depth): A bag filter needs ample physical room to perform efficiently. The pockets require long, unobstructed duct runs to inflate properly. We typically see length requirements between 12 and 36 inches. They must inflate fully without touching any downstream cooling coils or turning vanes. Conversely, box filters feature rigid, compact cells. They fit easily into tight, shallow AHU configurations where linear space is extremely scarce.
Airflow Variability: Variable Air Volume (VAV) systems present unique aerodynamic challenges. In these systems, fan speeds fluctuate throughout the day based on the building's cooling demand. Box filters maintain their rigid shape perfectly regardless of how fast or slow the fan spins. Traditional unreinforced pockets struggle here. They may sag when the fan slows down, then flutter violently when it suddenly speeds up. This constant fluttering can mechanically tear the media. It can also shake loose and release trapped dust back into the airstream.
Cost and Disposal: Flexible pocket designs generally cost significantly less to manufacture and transport. They are much lighter and completely lack heavy, rigid framing. When maintenance teams remove them, the empty pockets simply collapse flat. This makes disposal incredibly cheap and physically simple. You easily avoid the high landfill footprint and extra fees associated with throwing away bulky rigid metal or heavy plastic box frames.
Modern facility management demands strict adherence to evolving air quality regulations. You must accurately target specific particulate matter (PM) classifications to protect building occupants and sensitive equipment. The global standard ISO 16890 provides a precise, scientifically backed framework for mapping exact filter capabilities.
An industrial Air Filter is now classified based on its exact ability to capture ePM10, ePM2.5, and ePM1 particles. Choosing the correct efficiency grade proactively mitigates legal and health risks. It ensures your facility directly supports corporate compliance. You align seamlessly with EPA guidelines for building emissions and indoor air quality standards.
ISO 16890 Particle Size Classification Chart | ||
Classification | Particle Size Threshold | Common Industrial Pollutants Captured |
|---|---|---|
ePM10 | ≤ 10 μm | Pollen, heavy manufacturing dust, visible exhaust emissions |
ePM2.5 | ≤ 2.5 μm | Airborne bacteria, fungal spores, toner dust, mold |
ePM1 | ≤ 1 μm | Combustion smoke, certain viruses, harmful nanoparticles |
Despite these clear international standards, buyers must remain extremely vigilant. Avoid relying solely on outdated MERV ratings when evaluating performance. Traditional ratings often fail to capture real-world performance degradation accurately. Many modern synthetic filters rely heavily on an initial electrostatic charge. This charge helps them capture ultrafine particles easily during controlled laboratory testing. Over time in a real facility, ambient humidity and accumulated dust completely neutralize this static charge. As a result, the actual operating efficiency drops significantly below the printed label rating. Purely mechanical filtration media relies only on the physical density of the fibers. Though sometimes presenting a slightly higher initial airflow resistance, it maintains highly stable efficiency levels throughout its entire operational lifespan.
Specifying the correct components ensures your ventilation network runs optimally year-round. Procurement teams must look far beyond basic dimensions and generic product labels. They should critically evaluate structural integrity, airflow dynamics, and specific environmental threats present in their facilities.
Begin by assessing the header and frame specifications. Galvanized steel headers offer excellent rigidity and sheer physical strength. They are perfect for heavy-duty industrial applications. They withstand rough handling by technicians during installation. Conversely, extruded plastic headers provide superior corrosion resistance in constantly damp environments. They are also fully incinerable, creating an easier and much more sustainable disposal route for environmentally conscious operations.
Next, meticulously analyze the pocket count and depth configuration. There is a direct inverse relationship between pocket depth and internal system resistance.
More pockets and deeper lengths provide a massive, extended surface area for dust collection.
This massive area dramatically lowers the air velocity as it actually passes through the filter media.
Lower velocity equals drastically reduced pressure drop and substantially better particle capture rates.
However, deeper designs absolutely require matching fan capacity. You must ensure the blowers can generate enough static pressure so the pockets fully inflate without sagging onto the duct floor.
Watch out for specific operating environment red flags before placing a bulk order. High moisture and constant humidity strongly favor synthetic media over traditional fiberglass. Fiberglass can absorb moisture and shed glass fibers when wet. Extreme temperature variations require specialized heat-resistant adhesives and durable metal frame materials. Heavy turbulent airflow demands self-supporting or heavily stitched pocket designs. These reinforcements prevent tearing under immense aerodynamic stress.
To move forward successfully, establish a clear data baseline. Review your current fan energy usage logs and historical maintenance schedules. Once you know your baseline metrics, request vendor samples. Run a localized pilot test in a single air handler. Monitor the pressure drop gauge over several weeks before deploying a facility-wide upgrade.
Optimizing your ventilation system requires careful, data-driven component selection. The final decision to integrate a bag filter ultimately hinges on your available AHU space, your desired maintenance intervals, and your target energy expenditures. When deployed correctly, these components transform how a building handles airborne contamination.
Protect Downstream Assets: A properly specified unit drastically reduces the particulate load on final-stage HEPA filters. It captures the heavy debris early, extending the lifespan of sensitive terminal units and protecting your broader HVAC investment.
Lower Fan Workload: By maximizing available surface area, you maintain a significantly lower average pressure drop. This dynamic directly decreases the daily electrical demand placed on your fan motors.
Audit Your Data: Pull your current pressure drop readings and maintenance logs immediately. Use this data to identify any premature filter failure trends in your current setup.
Consult an Expert: Engage with a qualified engineering specialist. Have them run a comprehensive lifecycle cost analysis on your existing air handling units to uncover hidden operational waste.
A: Replacement frequency depends heavily on local air quality and total system operating hours. It typically ranges from 6 to 12 months. However, you should base replacement schedules strictly on pressure drop readings rather than fixed calendar dates to ensure optimal energy efficiency.
A: No. Washing destroys the mechanical structure of the media. It also strips away any electrostatic charge applied to synthetic fibers. They are strictly disposable components and must be replaced once they reach their final recommended pressure drop.
A: Unreinforced bags may deflate and reinflate rapidly. This fluttering can cause the media to tear or release trapped dust back into the airstream. For Variable Air Volume (VAV) systems, you should specify rigid pocket designs or rigid cell filters instead.
A: It acts as a high-capacity secondary shield. By capturing the bulk of incoming particulate matter, it prevents dust from fouling sensitive cooling coils. This drastically extends the lifespan of expensive terminal HEPA filters located further down the ductwork.
