Have you ever wondered why your indoor air still feels dusty or heavy even after running your HVAC system for hours? The answer often lies in the air filter media. Choosing the right filter is not as simple as picking the cheapest option on the shelf—it’s about finding the balance between efficiency, airflow, and health protection. With rising concerns about allergens, air pollution, and airborne pathogens, understanding the differences among filter media types is essential for cleaner air. This guide dives deep into the comparison of air filter media, explains their unique benefits and limitations, and helps you decide which filter works best for your home, office, or industrial environment.

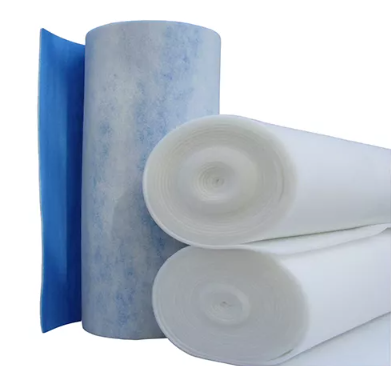

Air filter media is the core material inside a filter that traps particles such as dust, pollen, mold spores, smoke, and even microorganisms. While the frame provides structure, the media itself determines how effective the filter will be in improving indoor air quality.
There are several reasons why the choice of filter media matters: it directly impacts the quality of the air you breathe, it determines the energy efficiency of your HVAC system, and it influences how often you need to replace or clean your filter. More importantly, it can affect long-term health outcomes, especially for allergy or asthma sufferers.
The comparison of air filter media shows that not all filters are created equal. Some capture only large dust particles, while others trap microscopic pathogens. Understanding these differences helps you make an informed choice.
Before comparing media types, you need to understand the MERV rating system (Minimum Efficiency Reporting Value). This rating, ranging from 1 to 20, tells you how effectively a filter can capture particles of different sizes.
MERV Rating | Captures | Common Uses |
1–4 | Large dust, lint, carpet fibers | Basic residential, window units |
5–8 | Pollen, dust mites, mold spores | Standard homes, offices |
9–12 | Fine dust, pet dander, some bacteria | Homes with allergy concerns |
13–16 | Smoke, smog, bacteria, viruses | Hospitals, high-traffic buildings |
17–20 | Sub-micron particles, viruses | Cleanrooms, laboratories |
Higher MERV ratings capture smaller particles, but they also reduce airflow. Not every system can handle very high MERV filters without modifications. When comparing air filter media, the MERV rating is your reference point for efficiency.
Fiberglass filters are made of spun glass fibers and are the most basic option available. They are inexpensive and offer low resistance to airflow, but they only capture large dust particles. With a MERV rating between 1 and 4, they provide minimal filtration and are best suited for budget-conscious users who only need basic dust protection.
Pleated filters use folds of polyester or cotton to increase surface area and improve capture efficiency. With MERV ratings between 5 and 13, they can trap pollen, mold spores, and pet dander, making them a good choice for homes and offices. They last longer than fiberglass filters but create slightly higher resistance to airflow.
Washable filters, often made of foam or mesh, can be cleaned and reused multiple times. They are more eco-friendly than disposable filters and reduce long-term costs. However, they usually fall short in efficiency, offering limited allergen protection. They also require regular maintenance to prevent mold growth, which may be inconvenient for many households.
Electrostatic filters rely on a static charge to attract dust and other particles. Available in both disposable and washable formats, they perform well for households with pets or smokers. While they are more effective than fiberglass, their performance can decline as the static charge weakens or when humidity levels rise.
Unlike other filters that focus on particles, activated carbon filters are designed to absorb gases, odors, and volatile organic compounds (VOCs). They are highly effective against smoke, chemical fumes, and cooking smells. However, they do little to trap dust or allergens unless paired with pleated or HEPA filters.
High-Efficiency Particulate Air (HEPA) filters set the benchmark for air purification. By definition, they capture 99.97% of particles as small as 0.3 microns. This includes bacteria, allergens, and many airborne pathogens. Their biggest drawbacks are cost, higher airflow resistance, and the need for HVAC modifications in some cases. Despite that, they are the best option for medical facilities, cleanrooms, and households with severe allergy issues.
Industrial environments often deal with far more demanding air quality challenges, ranging from oily mists to explosive dusts. That’s where specialized filter media come in.
Cartridge filters, for example, can be made from cellulose, polyester, or blended materials. Cellulose is cost-effective but best suited for dry dust, while polyester is more durable and moisture-resistant. Blended media offer a balance of both.
Additional treatments enhance performance: PTFE coatings prevent sticky particles from clogging filters, nanofiber coatings capture ultrafine dust, fire-retardant treatments reduce ignition risk, oleophobic coatings repel oils, and anti-static filters eliminate sparks in hazardous dust environments. These innovations highlight how filter media can be tailored to meet strict safety and performance requirements.
When it comes to the comparison of air filter media, the best choice depends on where and how the filter will be used.
For residential spaces, pleated filters rated between MERV 8 and 10 are sufficient for controlling dust and pollen. If someone in the household suffers from asthma or allergies, a MERV 13 filter—or even a HEPA unit—can significantly improve air quality. Families concerned about odors from pets, cooking, or smoking may benefit from a combination of HEPA and activated carbon filters.
In commercial and office settings, filters must strike a balance between maintaining airflow and ensuring adequate protection. MERV 11 to 13 pleated filters are often recommended, especially in high-traffic spaces where the spread of bacteria and viruses is a concern.
For industrial facilities, the choice depends heavily on environmental conditions. Factories dealing with oily or greasy particles should rely on oleophobic or PTFE-coated filters. Food processing plants handling combustible powders like flour or sugar require fire-retardant or anti-static filters. Facilities in humid areas benefit from polyester or blended media that resist moisture damage.
To illustrate, here’s a quick reference:
Environment | Recommended Media | Primary Benefit |
Home (basic) | Pleated MERV 8–10 | Captures dust, pollen |
Home (allergy/asthma) | HEPA or MERV 13+ | Removes allergens, pathogens |
Office/Commercial | Pleated MERV 11–13 | Balances airflow & efficiency |
Industrial (oily dust) | PTFE or oleophobic | Prevents clogging, repels oil |
Industrial (combustible dust) | Anti-static/fire-retardant | Improves safety |
Industrial (humid) | Polyester/blended media | Resists moisture |
By aligning filter type with environmental conditions, you ensure both cleaner air and optimal system performance.
Even the best filter media won’t deliver results if neglected. Regular maintenance is key to ensuring efficiency. Most disposable filters should be replaced every one to three months, while washable types require thorough cleaning and drying at similar intervals. Pre-filters can extend the lifespan of HEPA or activated carbon filters, and proper installation helps avoid leaks where unfiltered air bypasses the media.
For those serious about monitoring air quality, indoor sensors provide real-time data on pollutants and remind you when replacements are needed. By combining smart maintenance with the right choice of filter media, you maximize both health benefits and cost efficiency.
Q1: How often should I replace my air filter?
Most filters need replacement every 1–3 months, though HEPA and carbon filters may require more frequent changes in high-use environments.
Q2: Can a high MERV filter damage my HVAC system?
Yes. If your system isn’t designed for high-efficiency filters, restricted airflow can strain the fan. Always check compatibility before upgrading.
Q3: Do HEPA filters remove viruses?
HEPA filters capture particles down to 0.3 microns, which includes many viruses and bacteria, making them highly effective in healthcare and residential use.
Q4: Are washable filters effective?
They work for light dust filtration and are eco-friendly, but they are less efficient against allergens compared to pleated or HEPA filters.
Q5: Do air filters help with odors?
Only filters with activated carbon or similar adsorptive media can effectively reduce odors and chemical fumes.
Q6: What’s the difference between MERV and HEPA?
MERV is a rating scale for general filters, while HEPA is a specific high-efficiency standard. HEPA roughly corresponds to the top of the MERV scale.
Cleaner air is not just a comfort—it is a necessity for well-being, productivity, and environmental safety. By carefully comparing air filter media and making informed choices, you ensure that your air filtration system works effectively, delivering consistent results over time. The right decision today leads to healthier living and working spaces tomorrow, proving that cleaner air truly begins with choosing the right filter.
